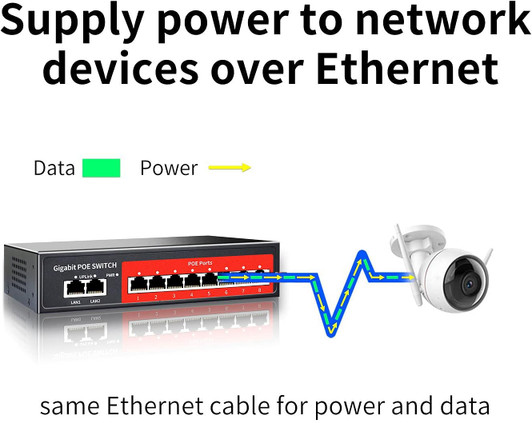

The POE Switches support poe devices and non poe devices, but when connecting passive poe device or non poe device, the switch can only transmit data and cannot power your device, so the connected device needs to be separately powered. Or you can use it with active poe splitter.
The PoE switch with 4 port PoE + 1 Uplink port,4 PoE ports providing up to 30W per port, total PoE budget 52W, 1 Port uplink ideal for connecting NVR and Internet
The poe port will intelligently judge whether the device connected to the port needs power supply. If it is a non poe device that does not need power supply, the switch will not supply power to these devices and will not damage the device.
The power supply is located in the switch body and integrated with the switch. It is simple and light. After connecting to our AC Power Cable, the switch can transmit power to the equipment connected to the switch.
The Switch have professional lightning protection design for 4KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence.
Turn on the extension switch，it enters the AI mode，POE port will judge whether it enters the ultra long distance (820ft/10Mbps) mode according to the actual situation).Extend function extending max power and data transmission distance from 100 meters to 250 meters.
Which is easy to expand network via ethernet cable to somewhere without power supply but need fix device such as IP Cameras.
The fanless design makes poe switch work without any noise.
