CTG HDMI Over Single Cat5e / CAT6 Upto 60 Meters With Loopout & IR

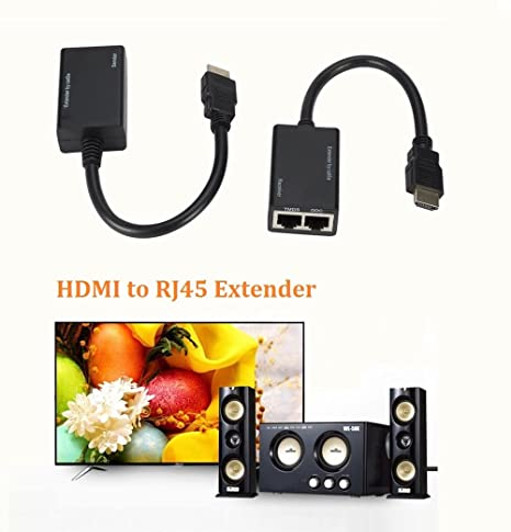

The HDMI to RJ45 Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

FEATURES

1.Signal transmission :CAT5e or CAT6(recommended) cables up to 60

meters instead of HDMI cables are connected between TX and RX

Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3) Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

4) Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

5) Support CEC.

6) Audio format support :

  DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.

7) No loss of quality.

8) Installs in minutes.

9) Need DC5V/1A power supply.

Specification

Length of CAT-6 cable between Transmitter and Receiver-----------------------------------------Up to 60 meters

HDMI Input--------------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input -----------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output------------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output-----------------------------------------------------------LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth----------------------------------------------------------------------------------------------------------165MHz

Max baud rate----------------------------------------------------------------------------------------------------------4.95Gbps

Input Video signal -------------------------------------------------------------------------------------------0.5~1.5Volts p-p

Output DDC signal-----------------------------------------------------------------------------------------5Volts p-p (TT1L)

Input/Output HDMI cable distance-------------------------------------------≤20m AWG26 HDMI standard cable
