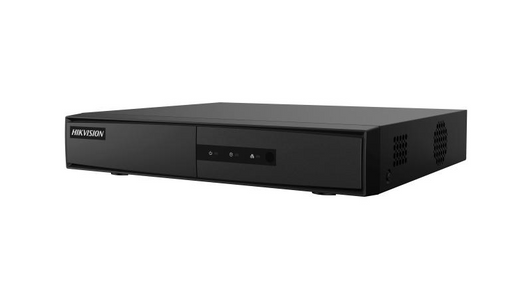

Hikvision 16CH Turbo HD DVR 7200 Series with HDMI, VGA & 2 USB Ports also Supports Hard Drive Up to 10TB and Carmera Up to 5MP Resolution

start of prefixes

16-ch 1080p Lite 1U H.265 DVR

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 18-ch IP camera inputs (up to 5 MP)
• Up to 1080p Lite@15 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF, For 720p stream access: 720p/WD1/4CIF/VGA/CIF, For standard definition stream access: WD1/4CIF/VGA/CIF


• Frame Rate Main stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps, For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fps, For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)


• Video Bitrate32 Kbps to 4 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input 2-ch (up to 18-ch), Up to 5 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input 16-ch,
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection


• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback16-ch

• Network
• Total Bandwidth96 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
• Remote Connection128
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

• Auxiliary Interface
• SATA1, SATA interface
• CapacityUp to 10 TB capacity for each disk
• USB Interface2 × USB 2.0

• General
• Power Supply12 VDC, 1.6 A
• Consumption≤ 10 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
