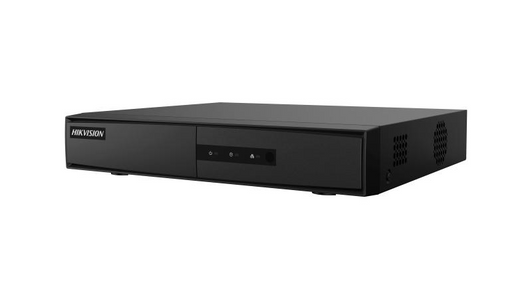

Hikvision 4CH DVR 1 Sata HDD Slot HDMI & VGA output TVI/AND/CVI/CVBS

• 4-in-1 Turbo HD DVR with 4CH Self-adaptive HD-TVI/AHD/HD-CVI/CVBS signal input
• Additional 1-CH 4MP IP Cameras Input, 5-CH total (4CH Analog HD + 1-CH IP. Any 4-CH Analog BNC HD video input can be individually converted to IP video channel (IP channel require POE switch, sold separately); up to 5-ch IP channels (with all analog channels converted to IP)
• One SATA interface for HDD (HDD not included). Supports up to 6TB HDD capacity.
• Supports up to 4MP HD-TVI & AHD Cameras / 2MP HD-CVI Cameras
• Full channel recording at up to 4MP Lite resolution. Use Hik-Connect App for remote surveillance

4-ch 1080p Mini 1U H.265 DVR

• 4 channels and 1 HDD mini size DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6 network cameras can be connected

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate Main stream: When 1080p Lite mode is not enabled:

  For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)



• Video Bitrate32 Kbps to 6 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input 1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras



• Incoming Bandwidth24 Mbps
• Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback4-ch
