Features:

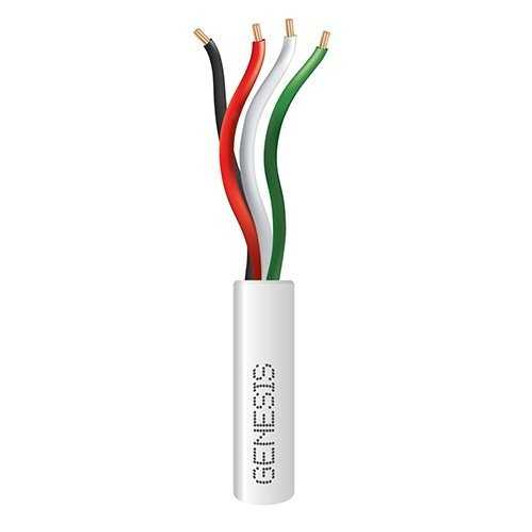

- Box of 22/4 Stranded, Unshielded, CM/CL2 type cable white
- The Honeywell Genesis Cable 1104 series is a 22 AWG, 4 conductor Stranded, Unshielded, CM/CL2 type cable.

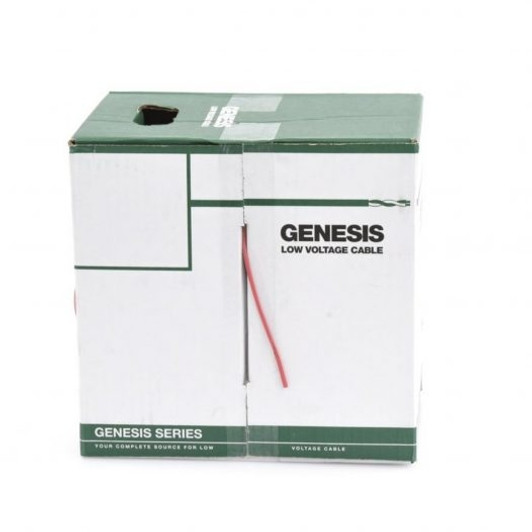

- The Genesis Cable part number, 11045501, is a 500' Box of 22/4 Stranded, Unshielded, CM/CL2 type cable in white.
Technical Specifications:
- Temperature Rating: -20 to 60C
- Operating Voltage: 300 Volts max.
- Capacitance: 14 pf/ft nom.
- Impedance: 105 Ohms nom.
- DC Resistance: 16.5 Ohms/M' at 20
- Flame Rating: UL 1685 Vertical Tray
- Conductor: 22 AWG 7/0.096 Bare Copper
- Insulation: Polypropylene
- Insulation: Thickness 0.006" nom.
- Insulation: Colors Blk, Red, Wht, Grn
- Insulation: Diameter 0.042 nom.
- Lay Length: Straight
