- Nexxt semi-assembled fixed wall cabinets are ideal for installations where space is limited or a full cabinet is not required. These wall units are housed in a heavy-duty lockable metal casing designed to keep network equipment secure and cables neatly organized in your installation. Each cabinet includes a vent tray to maintain optimal airflow inside the unit.
Specifications
- Material - Metal (SPCC)
- Fan - Ventilation Access for 2 Fans
- Door - Tempered glass door and back panel with lock and key
- Rack Design - Semi-assembled
- Rack Units - 12U
- Wall Mountable - Yes
- Load Capacity - Up to 60kg (Static Load)
- Up to - 30kg (Dynamic Load)
- Mounting Depth - 47.9cm
Features
• Maximum load capacity of 132lb
• Steel-reinforced frame construction is ideal for housing heavy equipment
• Lockable access through front glass door
• Practical side panels facilitate maintenance work
• Mounting rails with standard square holes allow quick installation of equipment
• The front door has an opening angle of 270 degrees

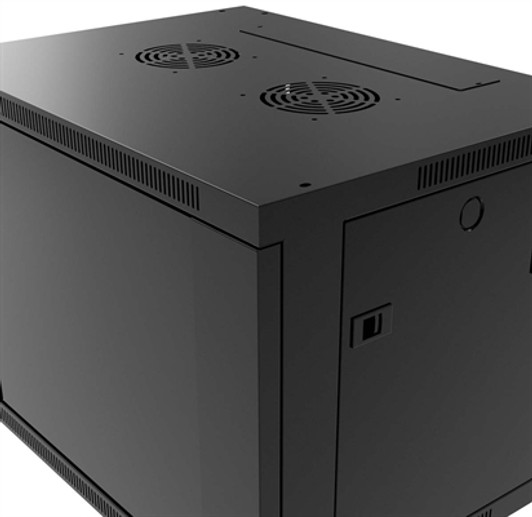

• Top tray with space for two optional fans provides exceptional airflow to prevent overheating
• Reversible glass door allows tool-free installation on either side
• EIA compliant rail system adjusts easily to accommodate equipment of various depths
• Numbered rack units on the front and rear sections simplify installation
• Special finished surface prevents corrosion and damage caused by other external factors.
Box Contents
- 1x top panel
- 1x base/bottom panel
- 2x frames
- 1x front glass door
- 1x back panel
- 2x side panels
- 2x L-shaped Brackets
- 1x mounting bracket
- 4x vertical rails
- 1x Assembly hardware kit
- 1x Equipment mounting hardware kit
- 1x User Manual
