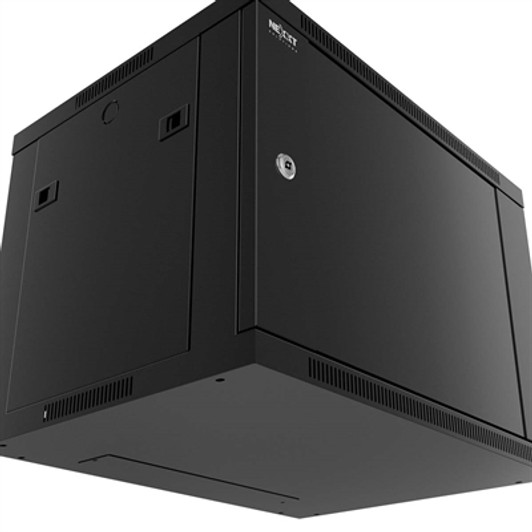

Nexxt 18U 550MM Network Cabinet with Tempered Glass Door Width 600mm Depth 550mm

start of prefixes

• Nexxt Solutions semi-knocked down (SKD) hinged wall mount enclosures are ideal for installations were space is limited or where a full cabinet is not required.
• Our wall mount enclosures are the perfect solution for any 19-inch installation.
• Commonly used with all patch panels and cable management panels to give installations an organized, protected and professional appearance. T
• These wall mount enclosures come as semi-knock down version.
• Available to accommodate EIA industry-standard 19-inch panels
• Follows ANSI/TIA/EIA-568 C.2 manufacturing standards and meets ANSI/EIA RS-310-D. It also complies with IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard
• Two section structure, the main body can turn 120 degree, the turning angle of front door is above 180 degree
• Compact welded frame design, featuring perforated top panel for ventilation.
• 19-inch standard installation provides easy access for management and maintenance
• One layer of electrostatic coating protects it against humidity, rust, scratches, peeling, strong acid and alkaline erosion.
• Black epoxy-polyester hybrid powder paint.
• For indoor use only, in environmentally controlled areas, may not be used outdoors, in industrial or harsh environments or in plenum spaces.
• Use with shelves or rails to support small modular network or voice switches routers and other network equipment
• Universal horizontal cable manager
• Horizontal power strips can be fit
• Tempered glass door and side panel with key lock.
• Channels for routing cables located on the top and bottom panels
  Adjustable vertical rails
• Attached grounding bolts
• Protection grade: IP20
• Max load: 132lb
• External Dimensions: Height 35.31", Width 23.62", Depth 21.65"
